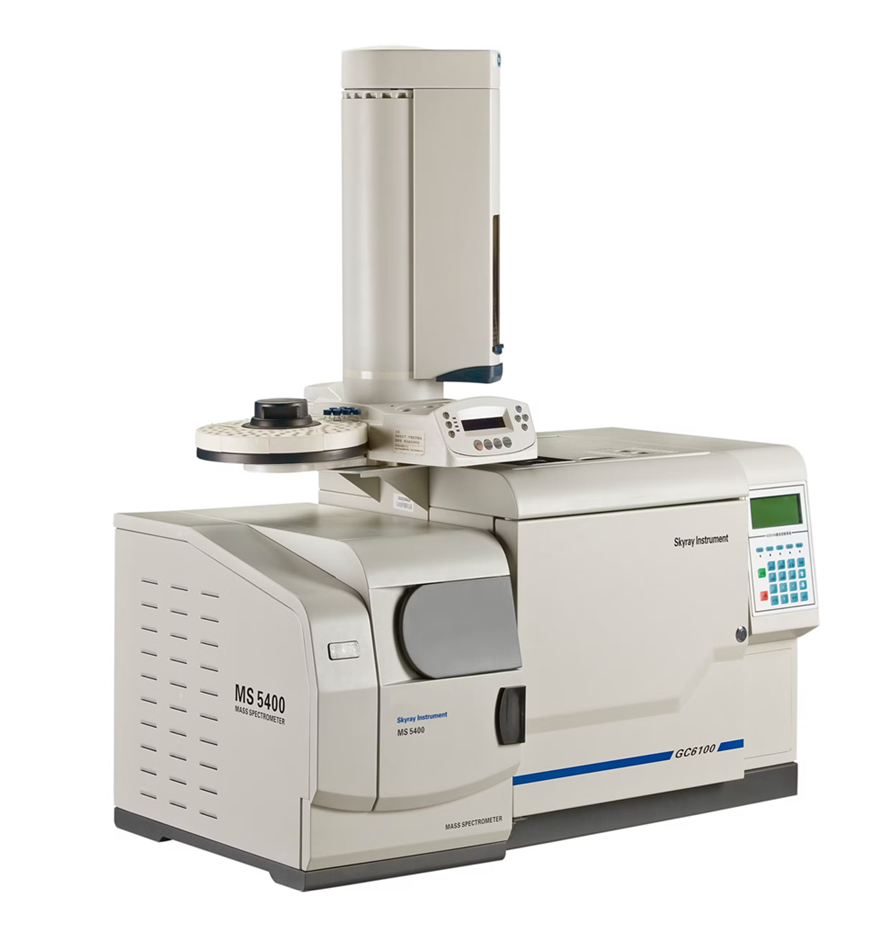

Pyrolysis Gas Chromatograph Mass Spectrometer

Key Features

• Detects RoHS 2.0 added phthalates (DIBP, DBP, BBP, DEHP, DNOP, DINP, DIDP), PBB, PBDE and thousands of other organic compounds, testing to IEC 62321-8 in 20–30 minutes per sample via automatic sampler, with detection limits of 0.003–0.005µg/mL
• Pyrolysis sampling requires no reagents or solvent extraction — the sample is analyzed directly, generating no wastewater or waste liquid, with throughput of 40–45 samples per day
• Direct solid/liquid pyrolysis up to 800°C at over 500°C/min heating rate with real-time temperature monitoring, suited to phthalates, PBBs and other high-boiling-point substances
• Results independently compared against Agilent instruments with consistent, comparable performance; retention time repeatability ≤0.005% and quantitation repeatability ≤0.4%
• High-precision quadrupole mass analyzer (1.5–1250 amu) with a long-life 13-stage electron multiplier detector (5-year warranty) and inert ceramic ion source, paired with a GC oven capable of 32-stage temperature ramps up to 450°C
• Backed by a 2-year full-instrument warranty, free lifetime software upgrades, and no-charge on-site repair visits for the life of the instrument
